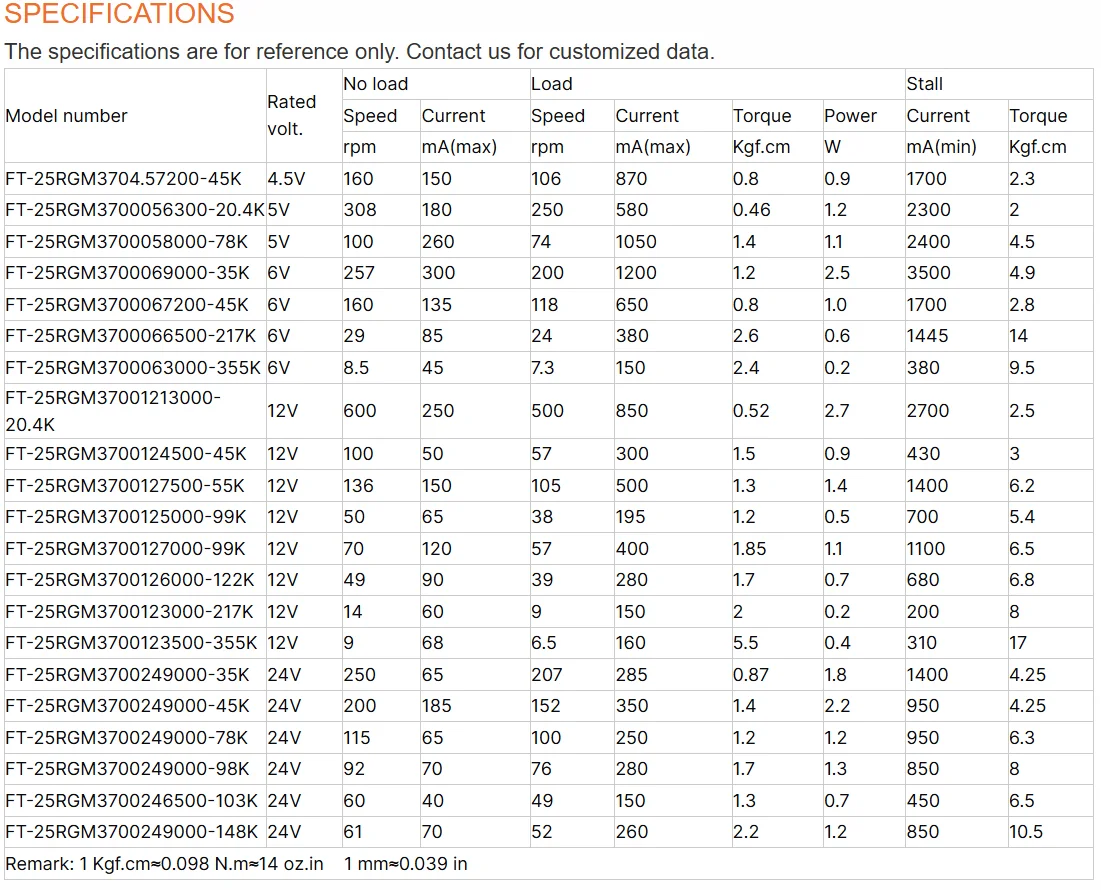

SPECIFICATIONS

Brand Name: Futech Motor

Certification: RoHS, CE

Commutation: Brush

Construction: Permanent Magnet

Continuous Current(A): 0.5A

Efficiency: IE 1

Frame: 25 mm

IP Rating: IP55

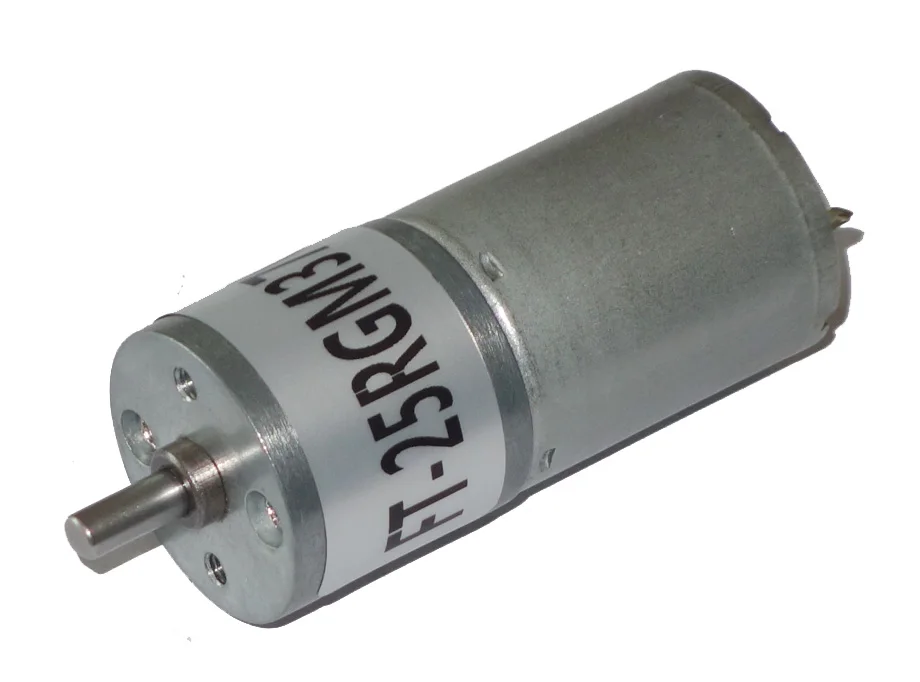

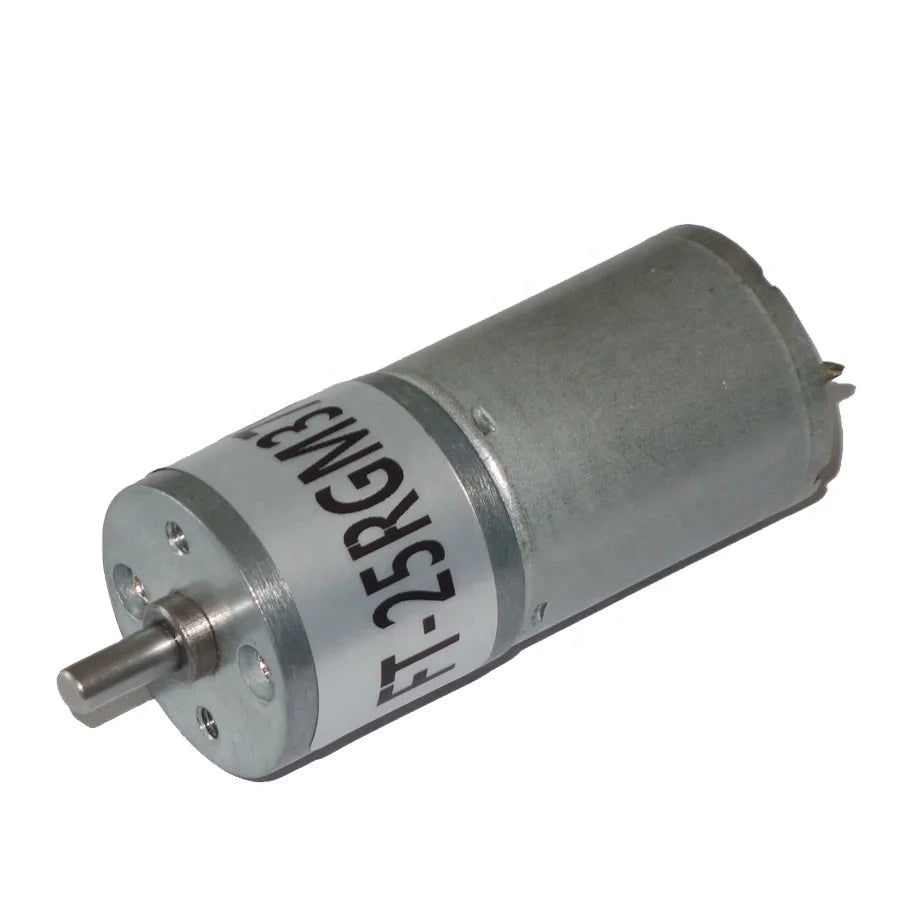

Model Number: FT-25RGM370

Motor Mounting Type: Flange Mount

Net Weight: 90g

Place of Origin: Guangdong, China

Protect Feature: Totally Enclosed

Rated Power: 1 W

Speed Rpm: 1~500rpm

Speed(RPM): 1~500rpm

Torque: 2Kgf.cm max

Type: Gear Motor

Usage: Home Appliance,Boat,Adult Toy,Electric Bicycle

Warranty: 3 months ~ 1 year

Product Highlights

Low Voltage Operation: Operates at 12V DC for efficiency and safety.

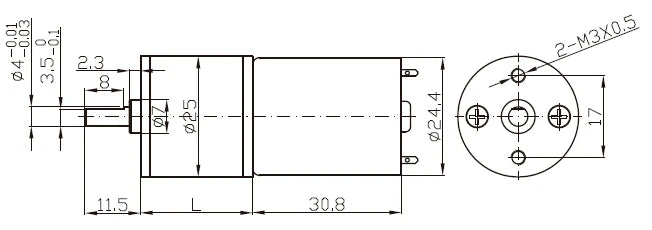

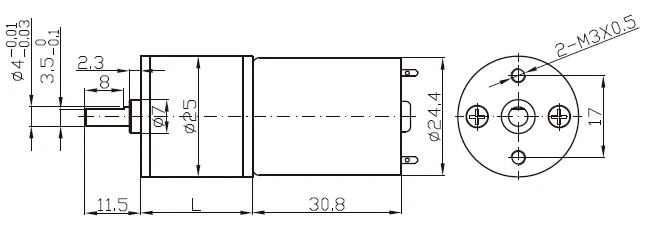

Compact Design: Measures 25mm in diameter for compact installation options.

High Torque Output: Provides up to 2Kgf.cm torque for robust performance.

IP55 Protection: Dustproof and splashproof, suitable for various environments.

Permanent Magnet Construction: Offers strong magnetic field for efficient power transfer.

Plastic gear optional for applications required low noise level.

All metal gears optional for heavy duty applications.

Custom made output shaft acceptable.

Soldering with lead wires optional.

FAQs

Q: Can a custom motor be manufactured based on specific requirements?

A: Absolutely! In fact, this is one of our primary strengths.

Q: Is the output shaft of the motor customizable?

A: Yes, absolutely. We can modify the output shaft to meet your needs.

Q: Does the motor rotate in both clockwise (CW) and counterclockwise (CCW) directions?

A: Yes, it can rotate in both directions without issue.

Q: Can you provide a sample motor, and if so, how long does delivery take?

A: Sure, we can provide samples upon request. The typical lead time for sample delivery is 1 to 2 weeks.

Q: What is the estimated delivery time for mass production?

A: Mass production deliveries typically take a month, unless there are additional requirements that need to be considered.

Q: What quality control measures do you have in place?

A: Quality control is a necessity, and we carry out 100% inspections on all motors.

Q: Is a warranty provided for the motors?

A: Yes, all our motors come with a one-year warranty.

Q: Are you a factory or a trading company?

A: We are an actual factory, not a trading company.
